Engineering module

Torque and drag

From the survey, string tally, hole program and friction factors, the software computes hook loads and surface torque for every operating mode — pick-up, slack-off, rotating on and off bottom, slide drilling and reaming.

What it computes

Key outputs

Per-mode hook loads and torques
Broomstick and torque vs depth
Effective tension, side force, stress and safety factor along the string
Buckling onset with minimum and maximum safe hook loads
Load roadmap across the whole section
Friction factor calibration from actual rig measurements

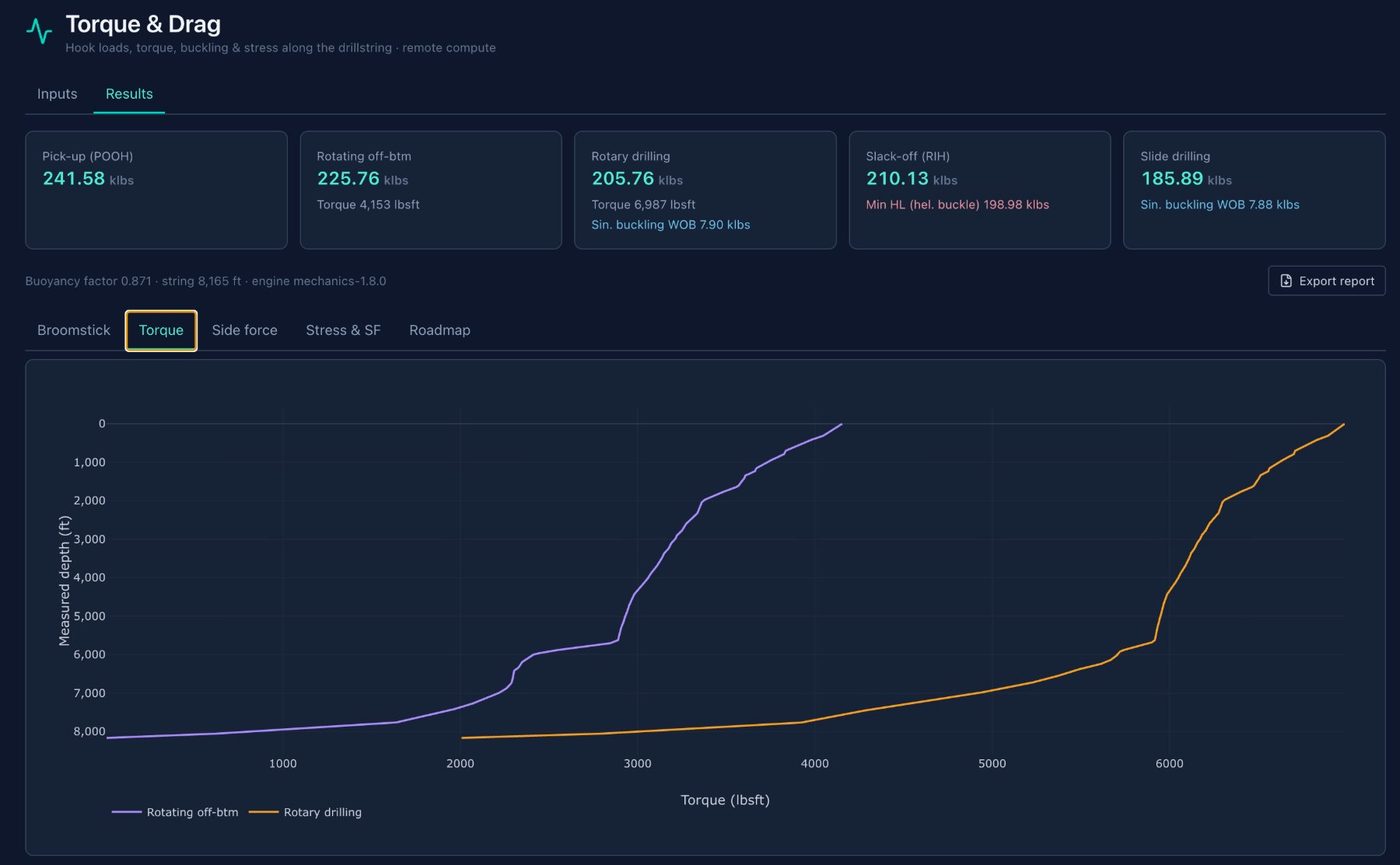

Torque and drag results with hook loads by mode and torque plotted against depth — Per-mode hook loads and torques, with torque against depth.

Note

Scope

The screens on this page show dummy sample data.
